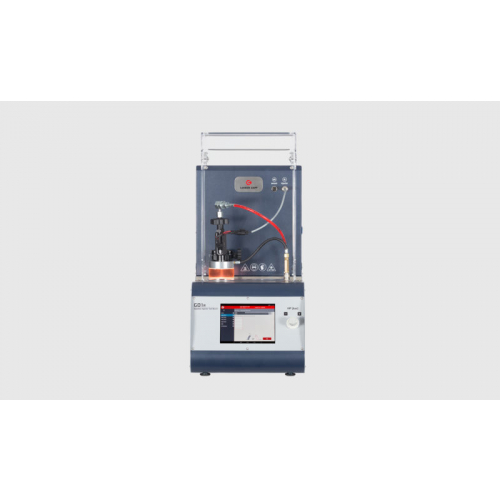

Carbon Zapp GD1R X

Gasoline Direct Injection requires High Pressure testing to truly diagnose operation faults. Carbon Zapp remains to offer the only complete and professional testing solution in the market today, with the Revolutionary GTB.4R X, GDU.4R X and GD1R X Test benches.



  • Test bench for 1 Direct Injector Up to 300Bar HP with 6.5 bar air supply
  • Test bench for 1 Conventional MPFi or 1 Racing application Injector 0-10Bar**
  • Electronic Static, Mass Measurement (DFAP) Resolution: 0.1mm3, Acc: 0.6%FS
  • Manual or Automatic Operation
  • Workshop & Expert level of Diagnosis
  • 7-8 min testing phase
  • 8” Touchscreen HMI
  • Ultrasonic cleaning function
  • VDO/Bosch/Denso Piezo Stack Regeneration function
  • CGL: VDO Automatic Valve Lift Gap Measurement
  • Blue Limits Diagnosis
